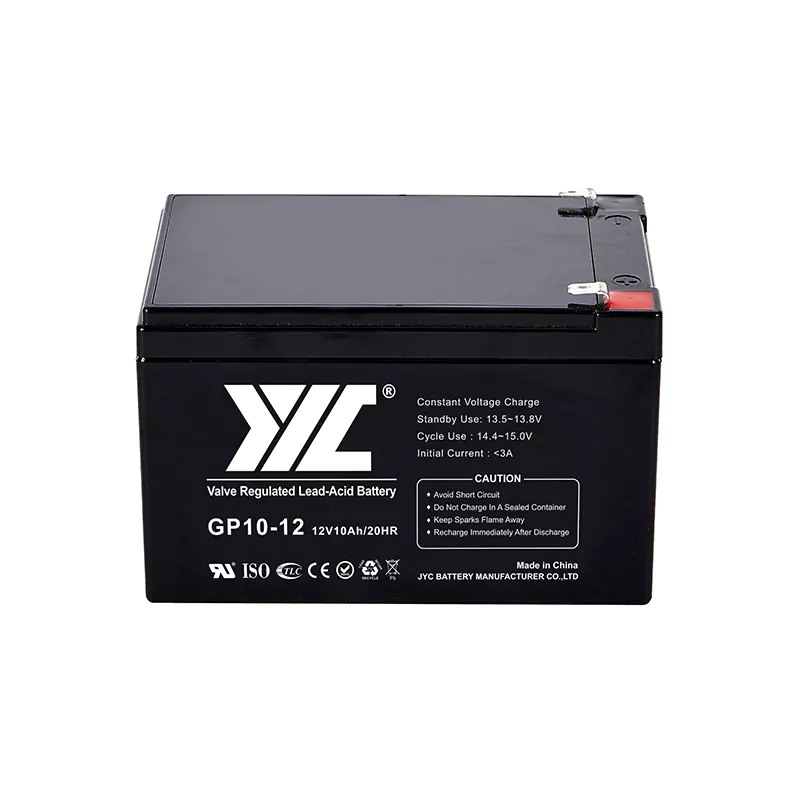

GP10-12 12V10AH
Category GP Series-General Purpose Battery
JYC GP Series VRLA batteries are designed with AGM (Absorbed Glass Mat) technology. High performance plates and electrolyte give extra power output for common power backup system.
Description
Specification
Advantage
Application
Terminal type
Description
Description:
Description of 12V 10Ah General PurposeBattery
GP 12V10AH is one of the best and hottest selling product in JYC general purpose battery series, by adopting our new advance revolutionary unique heat sealing and TTP welding technology. It assembled a complete design, having excellent performance in maintenance-free and leakage problem. The battery can offer a outstanding performance after deep discharge under frequently using, it can deliver nearly 250 cycles at 100% DOD. Even at harsh temperatures as low as minus 20℃( minus 4℉) or as high as 50℃( 122℉), GP 12V10AH will keep working under high pressure. GP 12V10AH has appropriate volume, long life and other brilliant characteristics, it can easily handle a variety of situations such as emergency power system, Telecommunication, alarm & security system, etc.
Features of GP10-12 general purpose battery
Absorbent Glass Mat (AGM) technology, LG raw material to increase battery service life.
TTP technique, to reduce internal resistance.
Heat sealing technique instead of glue sealing, to increase the tightness and stability of battery.
Low discharge rate for long shelf life, 3 to 5 years ‘Standard Commercial’ and 10/12 years ‘Long Life’.
Specification
Specification:
Model Number: | GP-12V10Ah | Length: | 152mm (5.98 inches) |
Nominal voltage: | 12V | Width: | 99mm (3.89 inches) |
Capacity@20HR(AH): | 10Ah | Heigth: | 95mm (3.74 inches) |
Weight: | 3kg (7.28lbs)土 3% | Case: | ABS |
Advantage
Advantage:
1.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
2.ABS battery case made by LG raw material to increase battery service life.
3.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
4.TTP technique not only reduce internal resistance and material cost but also increase battery life.
5.Conduct four large current discharge texting before package to insure battery quality.
6.Full charge before delivery. Buy and use it directly.
Application
Application:
Solar/Wind power system
Transportation
UPS system
Oil and Gas
Telecom
Emergency lighting
Medical equipment, etc.

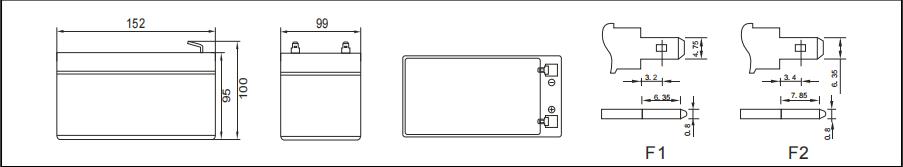

Terminal type
