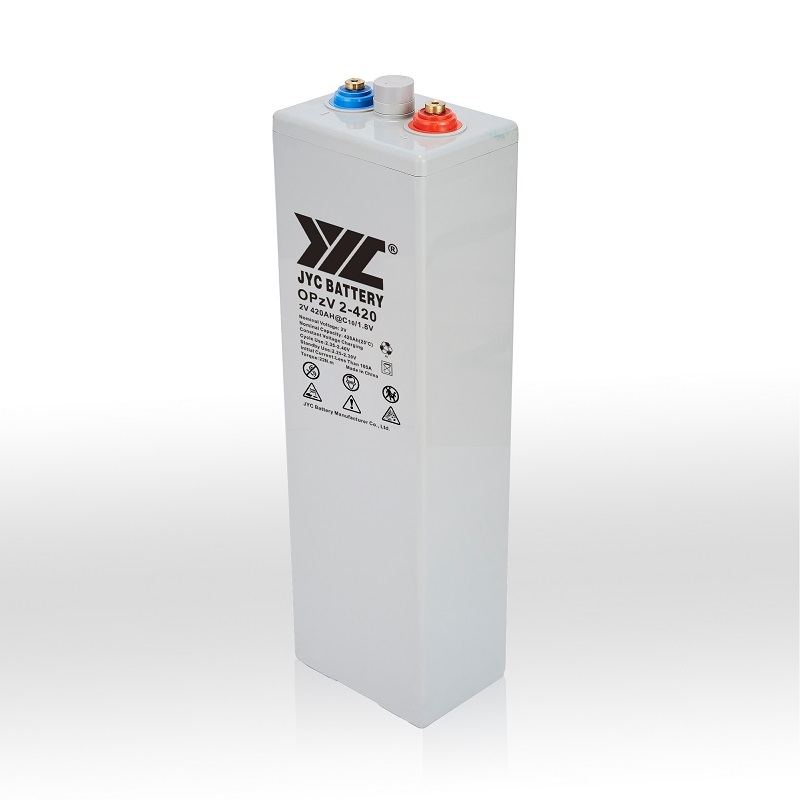

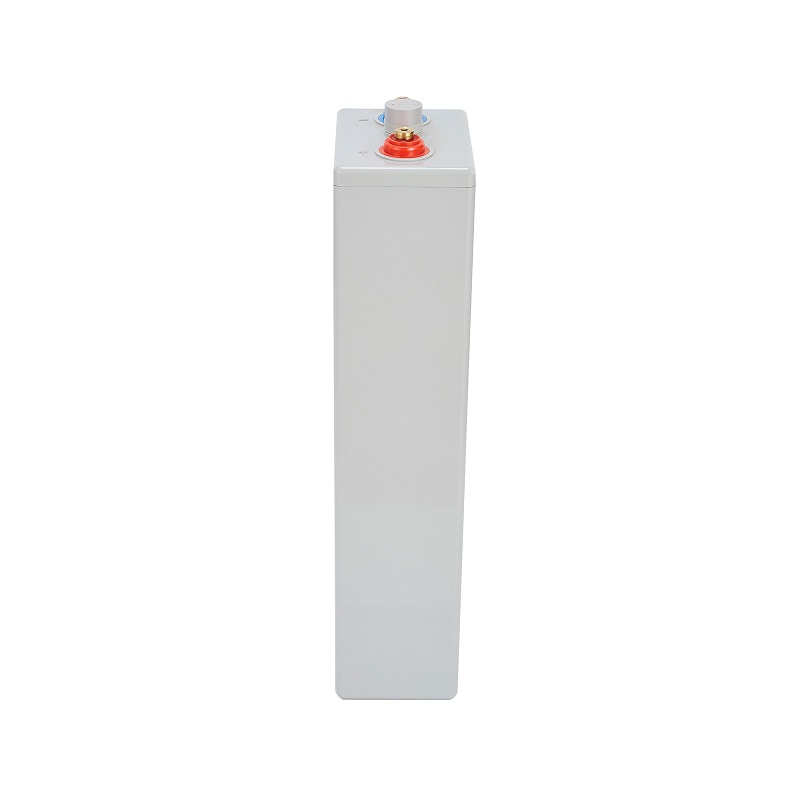

OPzV420-2 2V420AH
JYC OPzV battery series (Tubular GEL) battery is developed tubular positive plates with fumed gelled electrolyte. This battery is recommended for telecom outdoor applications, renewable energy systems and EXTREME environment applications.
Description
Specification
Advantage
Application
Terminal type
Description
Description：
OPzV 2V420AH has tubular positive plates and immobilized gel, which gives the battery high reliability and stable performance. By using diecasted positive grid and patented active material formula, its new performance shows much more stronger than the DIN standard values, meanwhile, it offers 20+ years design life in float service. With our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free, therefore, the battery represents high cost performance and low annual operating cost. The battery has wide protected operation temperature ranges of -40℃ to 65℃. OPzV 2V1000AH Keep high cycle life at 25℃(77℉), 1500 cycles at 80% DOD and 6800 cycles at 20% DOD. The battery is easy to move and handle, and it also has PVC separator, which it is special for gel battery with tiny holes.
Specification
Specification:

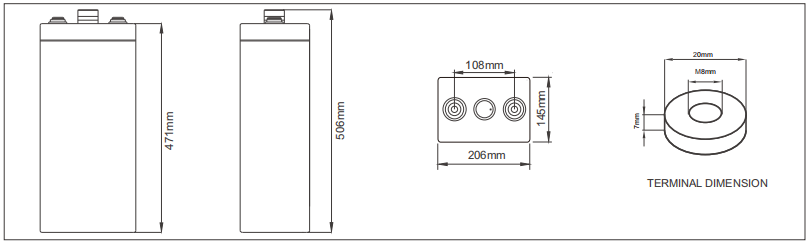

| Model Number: | OPzV 2V420AH | Length: | 145mm |
| Nominal voltage: | 2V | Width: | 206mm |
| Capacity@20HR(AH): | 420Ah | Heigth: | 506mm |
| Weight: | 32.5kg (71.7 lbs) | Terminal Type: | Female Copper Insert M8(torque:10~12N.m) |
Advantage
Advantage:
- Low Self-discharge
The self discharging of EFB battery is low.
- Deep-Cycling Performance
The technology provides two-times thedeep-cycling performance and partialstate of charge found in conventionalmaintenance-free batteriesy
- High Starting Powerin Low Temperature
Suitable for frequent starting.
- LONG CYCLIC LIFEFB
batteryhas low self-discharge andlong cyclic life.Conventionalmaintenance-free batteries can beused for2 to 3 years,while EFBbatteries can be used for 3 to 5 years.
Application
Application：
Solar/wind power system,
Standby power
UPS system
Emergency lighting
Transportation
Telecommunication

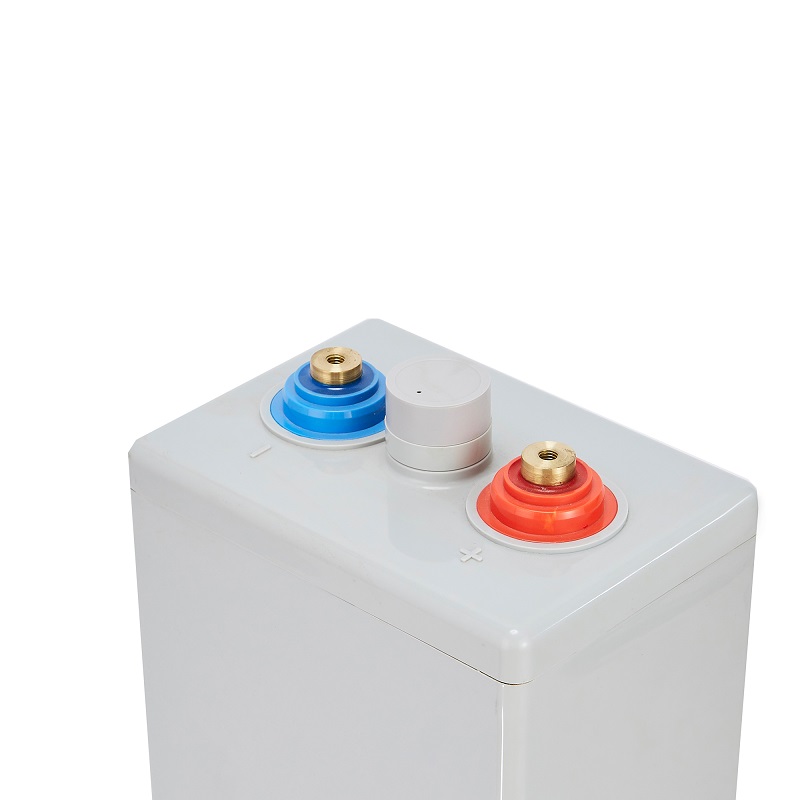

Terminal type
Terminal type:
