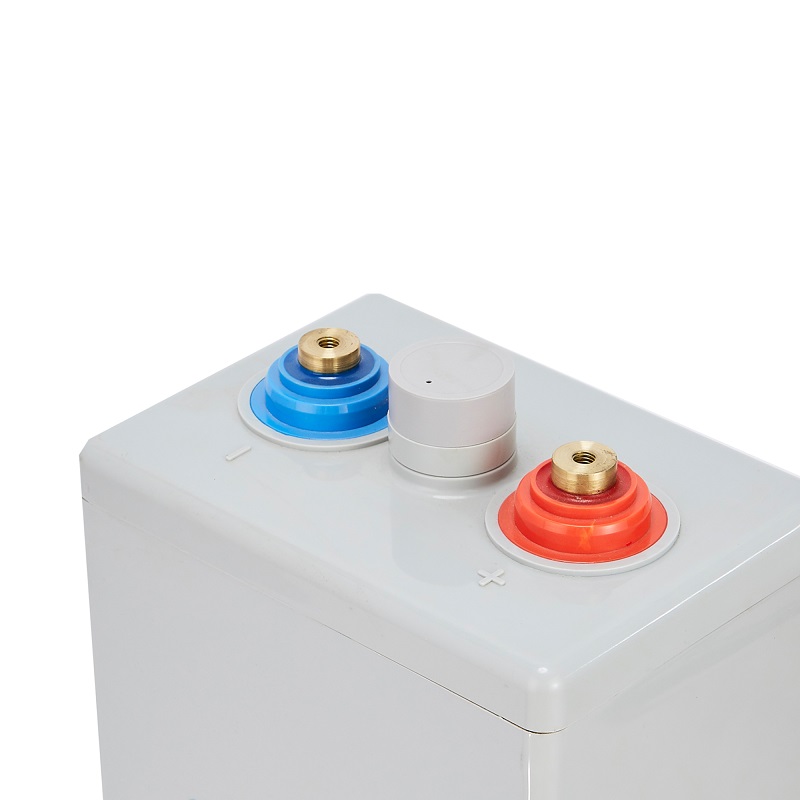

OPzV200-2 2V200AH
Category OPzV-Tubular Gel Battery
JYC OPzV battery series (Tubular GEL) battery is developed tubular positive plates with fumed gelled electrolyte. This battery is recommended for telecom outdoor applications, renewable energy systems and EXTREME environment applications.
Description
Specification
Advantage
Application
Terminal type
Description
Description:
OPzV 2V200AH has tubular positive plates and immobilized gel, which gives the battery high reliability and stable performance. By using diecasted positive grid and patented active material formula, its new performance shows much more stronger than the DIN standard values, meanwhile, it offers 20+ years design life in float service. With our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free, therefore, the battery represents high cost performance and low annual operating cost. The battery has wide protected operation temperature ranges of -40℃ to 65℃. OPzV 2V1000AH Keep high cycle life at 25℃(77℉), 1500 cycles at 80% DOD and 6800 cycles at 20% DOD. The battery is easy to move and handle, and it also has PVC separator, which it is special for gel battery with tiny holes.
Specification

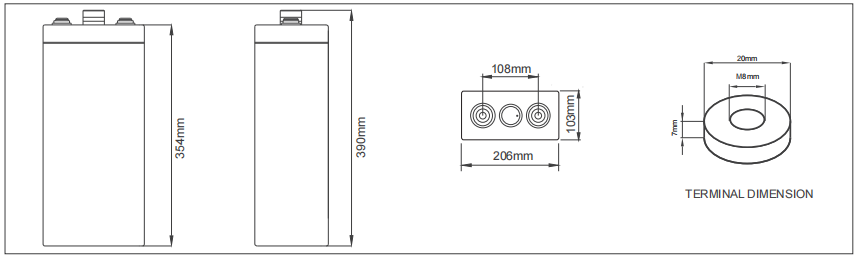

Specification:
Model Number: | OPzV 2V200AH | Length: | 103mm |
Nominal voltage: | 2V | Width: | 206mm |
Capacity@20HR(AH): | 200Ah | Heigth: | 390mm |
Weight: | 16.5 kg (36.37 lbs) | Terminal Type: | Female Copper Insert M8(torque:10~12N.m) |
Advantage
Advantage:
1.Suitable for deep / shallow cycle.
2.Much longer life of tubular positive plate.
3.Gelled electrolyte, no flow, no leakage, no gradation acid.
4.High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
5.ABS battery case made by LG raw material to increase battery service life.
6.Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
7.TTP technique not only reduce internal resistance and material cost but also increase battery life.
8.Conduct four large current discharge texting before package to insure battery quality.
9.Full charge before delivery. Buy and use it directly.
Application
Application:
Solar/wind power system,
Standby power
UPS system
Emergency lighting
Transportation
Telecommunication
Terminal type
